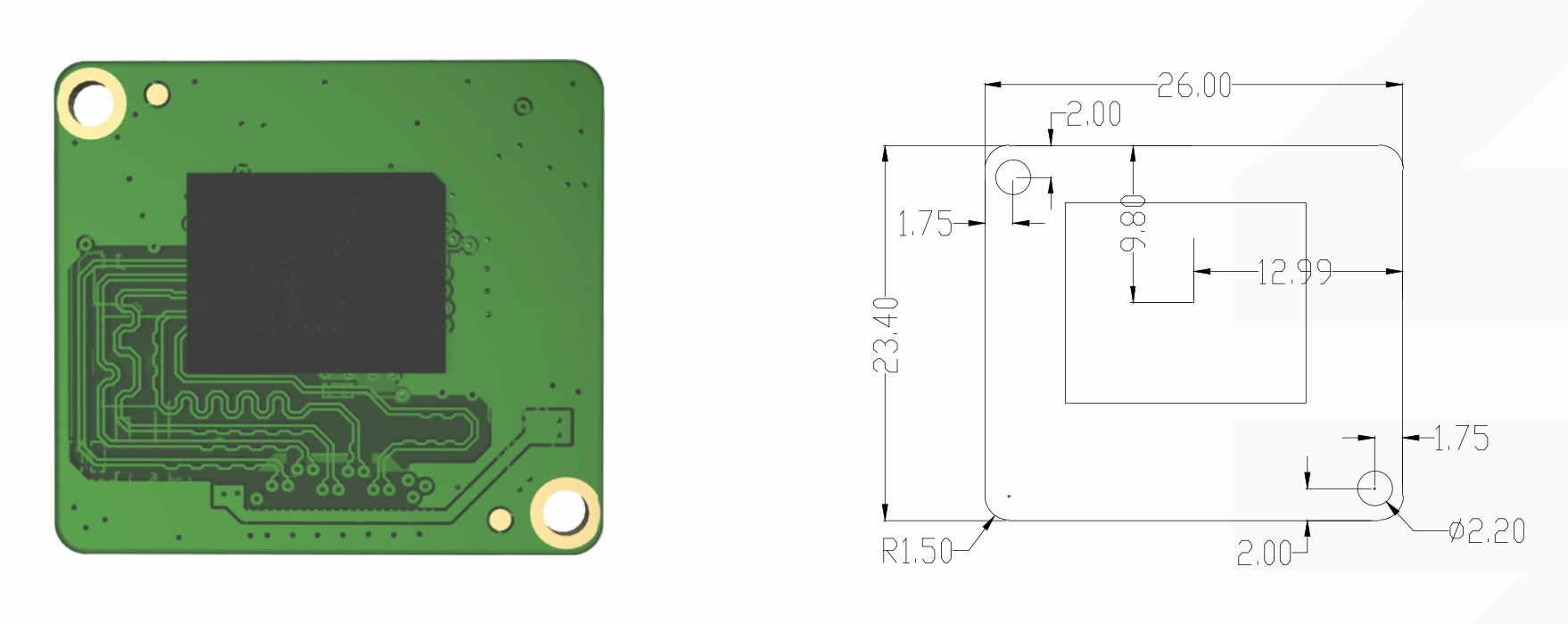

2K Module
Image sensor motherboard
Model: 2KN1-S
This type of product can be applied to the handle and host of endoscopic camera systems, providing functions such as 2K resolution image processing.
Features
Adopting Sony IMX327 1/2.8 "2M image sensor
700NM infrared cut-off filterFour
layer PCB design, excellent EMC performance
Adopting coaxial cable communication, with strong anti-interference ability
Cooperate with NP108-T data board to achieve POC power supply

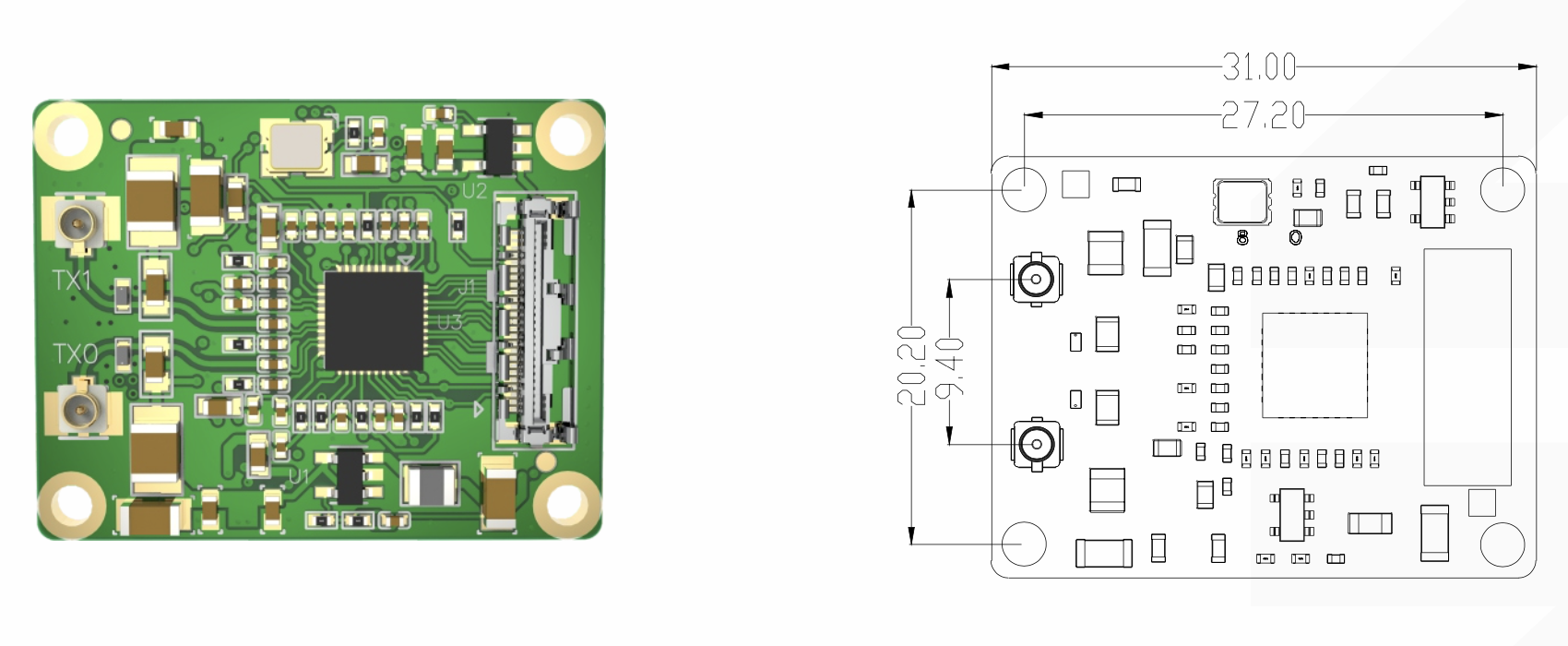

3G data transmission board
Model: 2KN1-Tx
This type of product can be applied to the handle and host of endoscopic camera systems, providing functions such as 2K resolution image processing.
Features
Single coaxial cable transmits data, control signals, and power
Up to 3Gb data transmission bandwidth
layer PCB design, excellent EMC performance
Adopting coaxial cable communication, with strong anti-interference ability
Support three-way magnetic Hall switch and six way button switch control

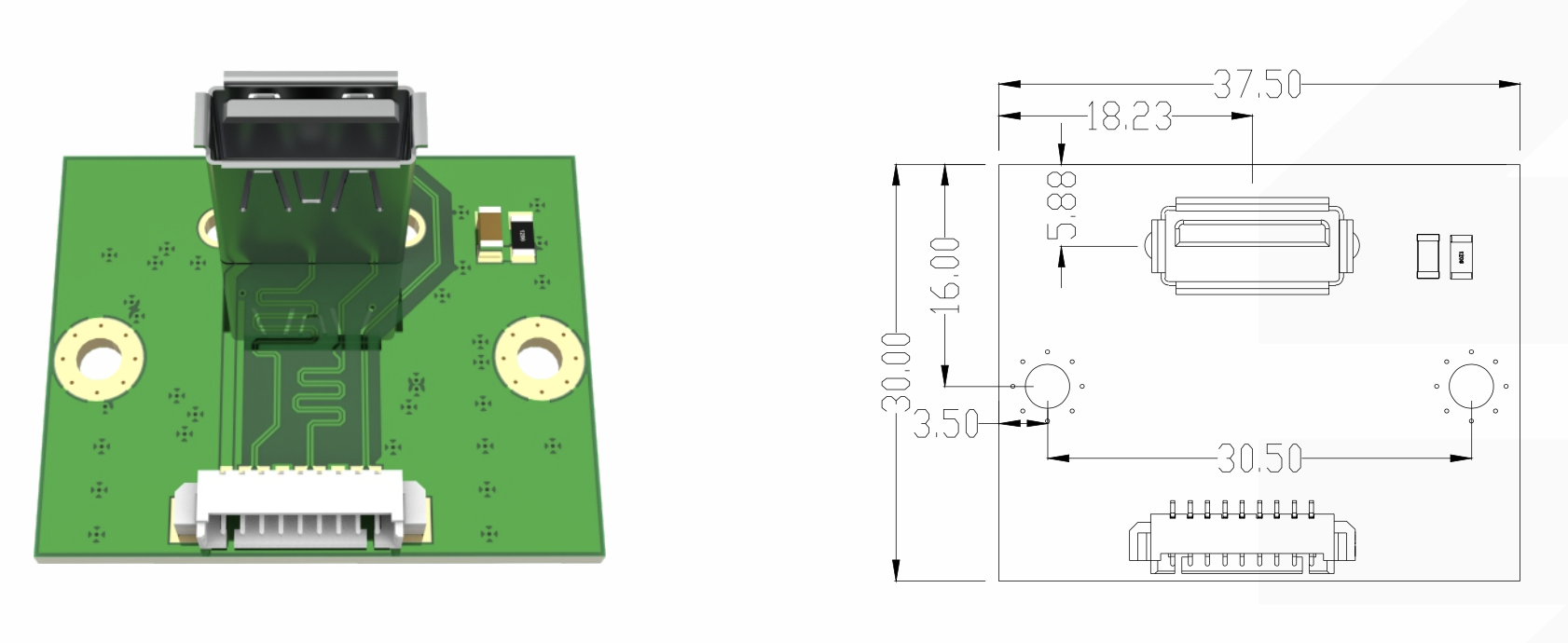

Front USB interface board
Model: 2KN1-U
This product can be applied to the front USB 3.0 interface of the 2K endoscope camera system host as a USB interface extension for the system motherboard.
Features
Host front USB 3.0 high-speed interface
Multi layer high-frequency PCB design, excellent EMC performance
Accurate impedance matching design ensures signal integrity

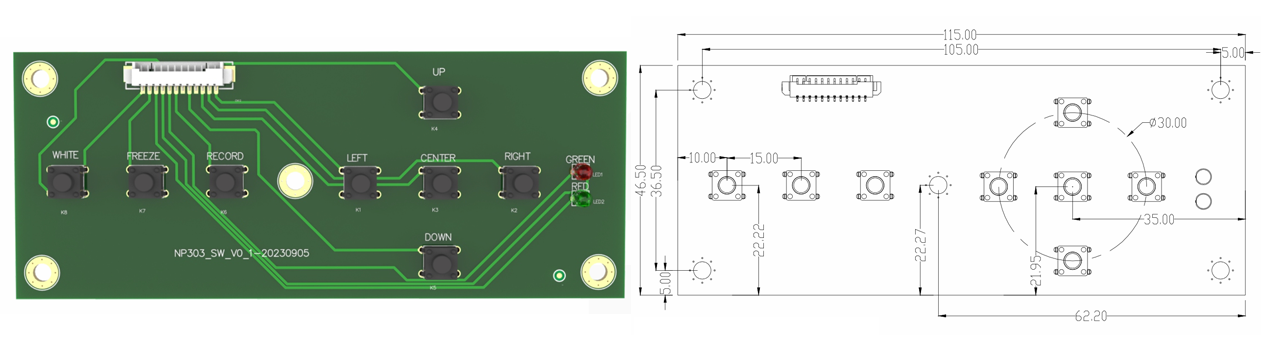

Multi functional keypad
Model: 2KN1-Sw
This product can be used in the mainframe of endoscopic camera systems for operating the buttons on the panel.
Features
2K camera system host buttons, supporting menu keys, directional keys, white balance, freezing, recording and other functional operations
Mechanical micro switch, with an ultra long service life

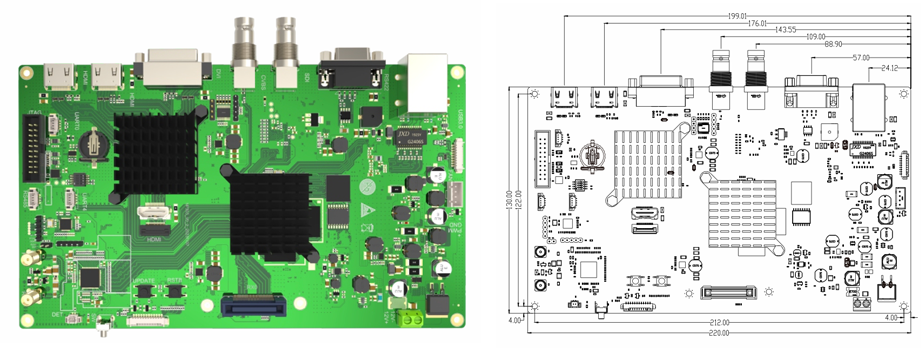

2K Multi functional keypad
Model: 2KN1-M
This type of product can be applied to the handle and host of endoscopic camera systems, providing functions such as 2K resolution image processing.
Features

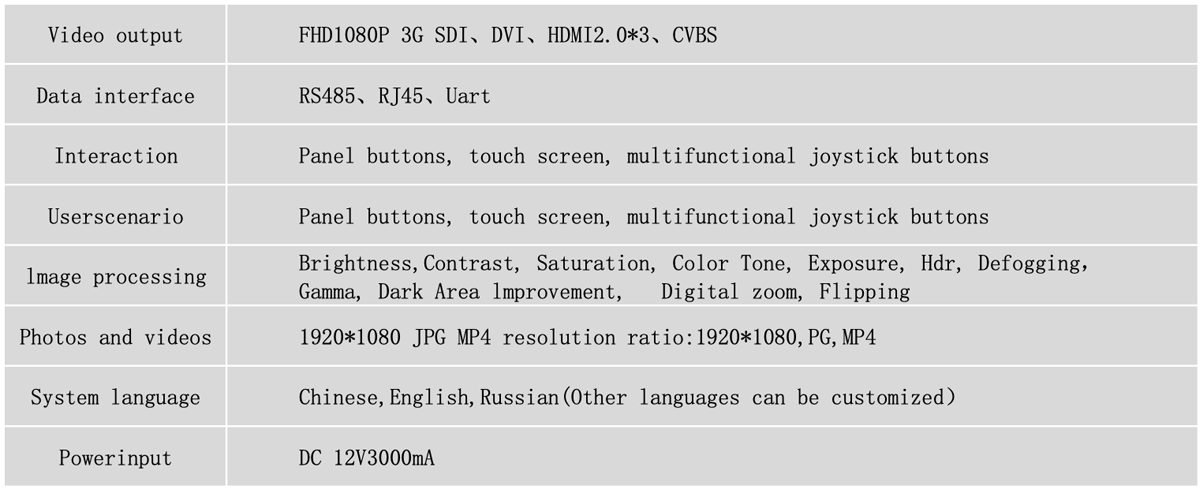

Integrated AI ISP, supports multiple image processing algorithms and input/output interfaces, supports high-definition recording and playback.
